MICRO-VU EXCEL 511/512

MICRO-VU EXCEL 511/512

제조사: MICRO-VU   |   제조국가: AMERICA

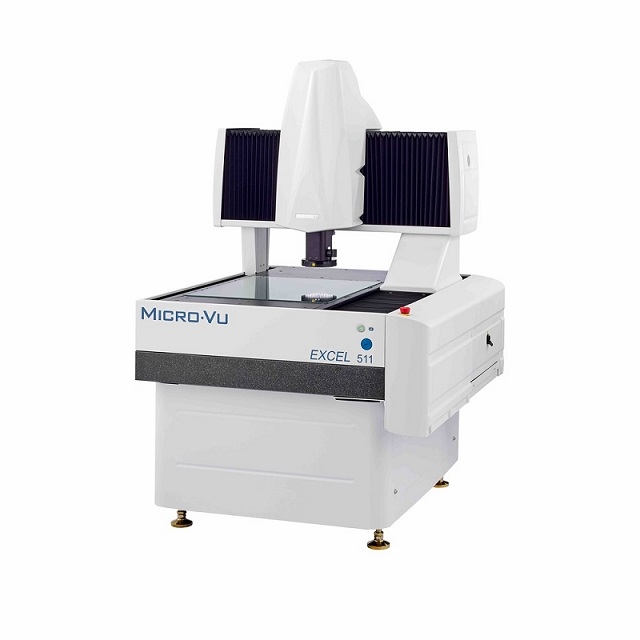

Excel 511/512 The New Excel Measuring Centers employ new technologies to provide high
speed and accuracy on reliable and affordable measurement systems.

The gantry style vision systems can accom modate large parts and fixtures of multi ple parts while maintaining a relatively small footprint. “Monorail” linear way bearings, dual encoder servo control, and sophisticated electronics allow these systems to reach 500 mm/sec.


  • 사양



Model Excel 511 Excel 512
Measuring Volume (mm) 420x520x160 420x520x250
Weight Capacity 100 kg
Net Weight 690 kg 699 kg
Machine Dimensions (mm) 1295x1221x1629 1295x1221x1803
XY Accuracy (μm) 2.5+L/200 2.8+L/200 3.1+L/200 2.8+L/200
Z Accuracy (μm) 2.5+L/100 2.8+L/100 3.3+L/100 3.0+L/100
Resolution 0.05 μm
Basic Manigication 1X(LWD)/2X(SWD)
Optical Zooming 6.5x 12x 6.5x 12x
Digital Zooming 3x
On-Screen Zoom Range 21x-370x /42x-740x 18x-540x / 36x-1080x 21x-370x / 42x-740x 18x-540x / 36x-1080x
