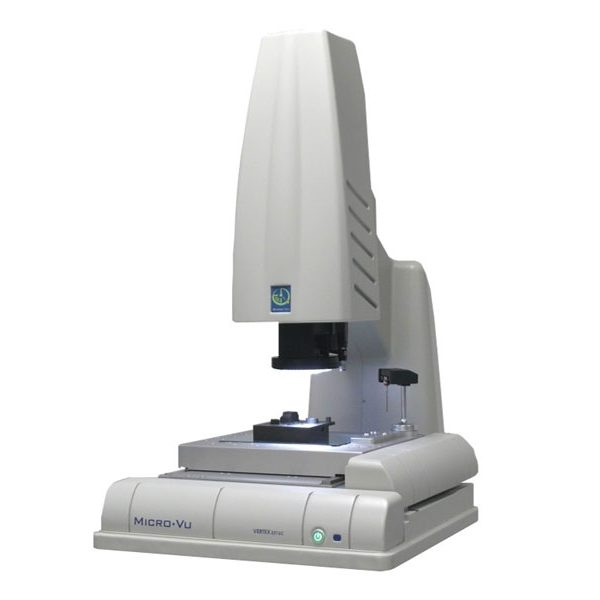

MICRO-VU VERTEX 261/341/342

MICRO-VU VERTEX 261/341/342

제조사: MICRO-VU   |   제조국가: AMERICA

The Vertex 261/341/342 Multi-sensor Measurement System implements new technologies to provide speed and accuracy on a reliable and affordable measuring machine.

InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibration, and a clear display of measurement data and tolerances.

  • 사양



Model Vertex 261 Vertex 341 Vertex 342
Measuring Volume (mm) 250x160x160 315x315x160 315x315x250
Weight Capacity 10kg
XY Accuracy (μm) 2.0+L/200 1.8+L/200 2.6+L/200 2.0 + L/200 2.6+L/200 2.0+L/200
Z Accuracy (μm) 2.0+L/150 2.0+L/150 2.0+L/150 2.0+L/150 3.0+L/150 2.3+L/150
Resolution 0.1μm
Basic Magnification 1X(LWD)/2X(SWD)
Optical Zooming 6.5x 12x 6.5x 12x 6.5x 12x
Digital Zooming 3x
On-Screen Zooming Range 22x-390x
44x-780x		 18x-540x
36x-1080x		 22x-390x
44x-780x		 18x-540x
36x-1080x		 22x-390x
44x-780x		 18x-540x
36x-1080x
