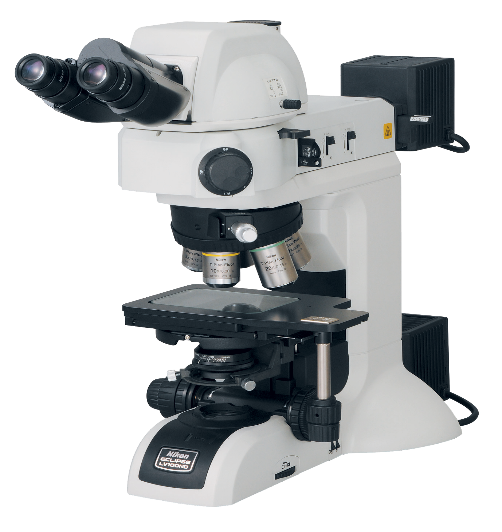

| Basic unit | Maxium sample height 38mm (when used with LVNU5AI U5AL nosepiece and LV-S32 3x2 stage/ LV-S64 6x4 stage *73mm then used with one column riser 12V50W internal power source for dimmer , coarse and fine adjustment knobs Left: coarse and fine adjustment/ Right: fine adjustment, 40 mm stroke Coarse adjustment: 14 mm/ turn (with torque adjustment, refocusing mechanism) Fine adjustment: 0.1 mm/ turn (1µm/graduation) Stage mounting hole intervals: 70x 94 ( fixed by 4-M4 screw) |
||
| Nosepieces | C-N6 ESD Sextuple Nosepiece ESD LV-NU5 Universal Quintuple Nosepiece ESD LV-NBD5 BD Quintupe Nosepiece ESD LV-NU5l Intelligent Universal Quintuple Nosepiece ESD | ||
| Episcopic illuminator | LV-UEPI-N LV-LH50PC 12V50W Precentered Lamphouse Bright/ darkfield switch and linked aperture stop ( centerable) field diaphragm (centerable) Accepts Φ 25 filter (NCB11, ND16,ND4), polarizer/ analyzer, plate, excitation, light balancer, equipped with noise terminatior LV-UEPI2 LV-LH50PC 12V50W Precentered Lamphouse HG precentered fiber illuminator: C-HGFIE ( with light adjustment) * option Bright/ darkfield switch and linked aperture stop (centerable), field diaphragm (centerable), automated optical element switching feature matched to brightfield, darkfield, and epi- fluorescence switch Accept Φ 25 filter (NCB11, ND16,ND4), polarizer/ analyzer, λ plate, excitation, light balancer, equipped with noise terminatior |
||
| Eyepiece tubes | LV- TI3 trinocular eyepiece tube ESD (Erected image, FOV: 22/25) LV- TT2 TT2 tilting trinocular eyepiece tube ( Erected image, FOV: 22/25) C- TB binocular tube (Inverted image, FOV:22) P- TB binocular tube (Inverted image, FOV:22) P-TT2 Trinocular tube (Inverted image, FOV:22) |
||
| Stages | LV-S32 3x2 Stage ( Stroke 75x50 mm with glass plate) ESD compatible LV-S64 6X4 Stage ( Stroke 150x100 mm with glass plate) ESD compatible LV-S6 6x6 Stage (Stroke 150x150mm) ESD compatible |
||
| Eyepieces | CFI eyepiece series | ||
| Objective lenses | Industrial Microsope CF160-2/ CF160 optical system Objective lens series: Combinations in accordance with the observation method | ||
| ESD performance | 1000 to 10V, within 0.2 sec (excluding certain accessories) | ||
| Power consumption | 1.2 A/ 75 W | ||
| Weight | Approximately 8.6 kg | ||
