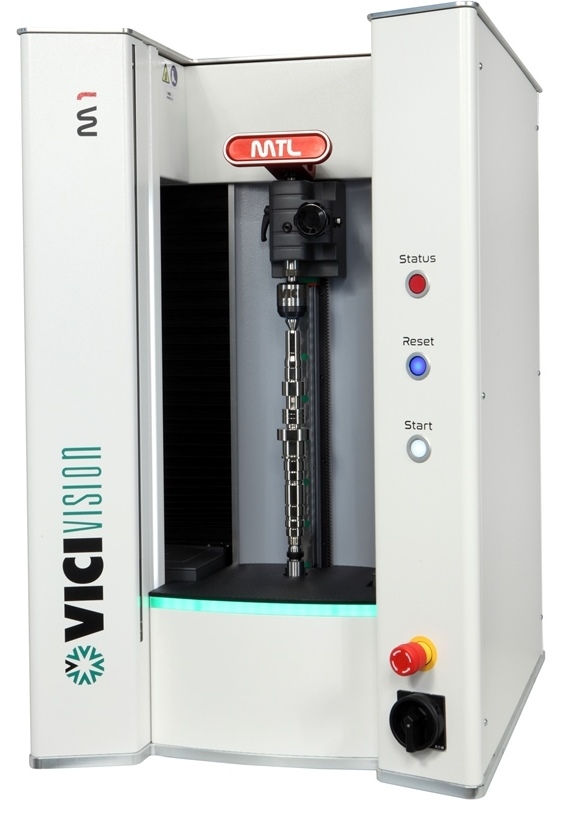

VICIVISION M Series

VICIVISION M Series

제조사: VICIVISION   |   제조국가: ITALY

The ideal tool to flank multi-spindle lathes or sliding head lathes. A range of solutions with unbeatable price-performance ratios, selected just for you.Compact and ergonomic, the ideal tool to flank multi-spindle lathes or sliding head lathes. From simple fittings to large shafts M Series machines measure up to 140×900 mm (5.5” diameter x 35” length). M Series embraces the concepts of ergonomics, designed to improve use in production.

  • 사양

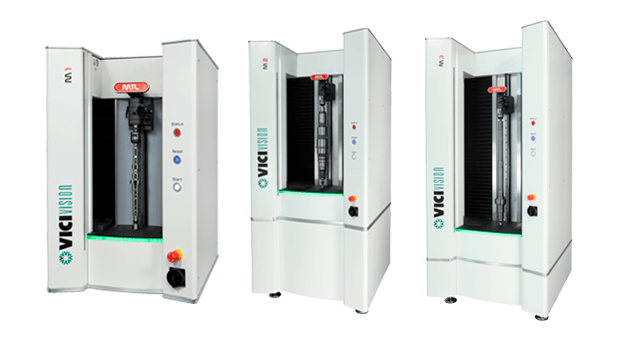

Model M1 M1C M2 M3
Measuring field
 300x60 mm. 160x60 mm. 600x140 mm. 900x140 mm.
Max. loadable sizes 315x120 mm. - 10 Kg. 625x240 mm. - 30 Kg. 925x240 mm. - 30 Kg.
Accuracy Ø - L 2 + D(mm)/100)] µm
5 + L(mm)/100)] µm
Repeatability Ø - L 0,4 µm / 3 µm
Size LxDxH mm 595x780x950 mm. 920x1030x2000 mm.
Power supply Voltage 230 V.
Frequency 50/60 Hz.
Nominal power 1,73 A.
